High-Resolution LED

Ultra-small pixel pitch LED panel displays, designed for HD resolution content, providing LCD quality, superb brightness, flexible installations and unlimited scalability. Cost-effective and exceptionally efficient - the future of digital display technology is here.

high-resolution LED

High-Resolution LED

Ultra-small pixel pitch LED panel displays, designed for HD resolution content, providing LCD quality, superb brightness, flexible installations and unlimited scalability. Cost-effective and exceptionally efficient - the future of digital display technology is here.

WHY CHOOSE HIGH-RESOLUTION LED?

CRYSTAL CLEAR IMAGE CLARITY

Present your content like never-before with stunning ultra high-resolution LED panel display technology

ADAPTABLE BRIGHTNESS

Automatic brightness sensors ensure uniform quality across the display in any indoor environment

COST-EFFECTIVE WITH LOW TCO

LED presents amazing cost-effectiveness and total cost of ownership compared to other display technologies

LIMITLESS
SCALABILITY

Modular LED panels allow creation of displays to any size and shape, with quick install and maintenance

Ready to discover the possibilities with High-Res LED?

Ready to discover the possibilities with High-Res LED?

Ready to discover the possibilities with High-Res LED?

Unrivaled performance.
Unmatched functionality.

  • 1mm & 2mm Pixel Pitch achieving LCD-like quality
  • High-contrast & grey scale with perfect RGB processing
  • Point-to-Point colour & brightness correction
  • Ultra-thin and lightweight, but exceptionally durable
  • Fanless, zero-noise design with automatic heat dissipation
  • Energy-saving, eco-friendly solution with low consumption
  • Designed for 24/7 operation with <100,000hr lifetime
high resolution LED display
led display panel

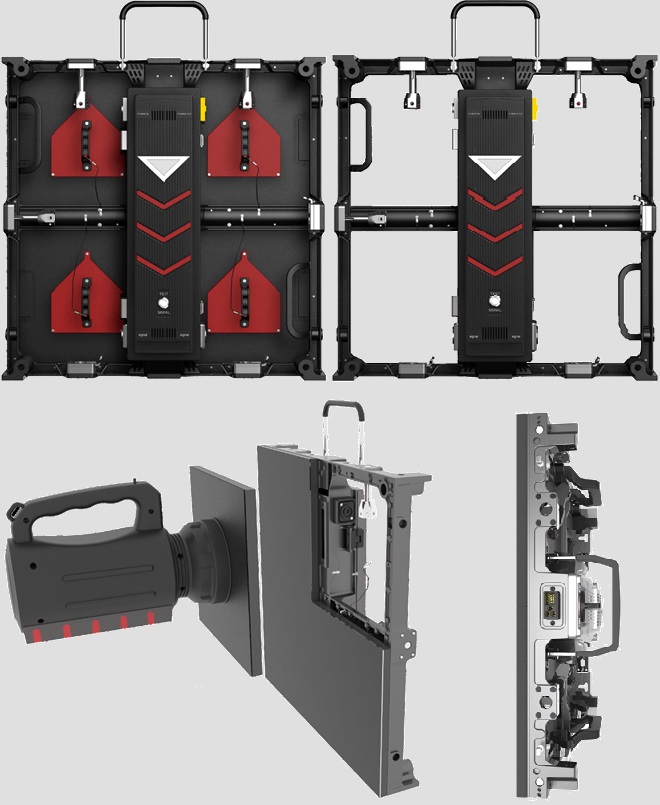

Designed to save time & cost.

  • Modular solution for expansion & scalability​​​​
  • Build to any size/shape with no constraints
  • Quick & accurate installations with clip-in design
  • Aviation connectors with quality guarantee
  • Designed for rapid swap-out of any component
  • Industrial quality PSU for consistent performance

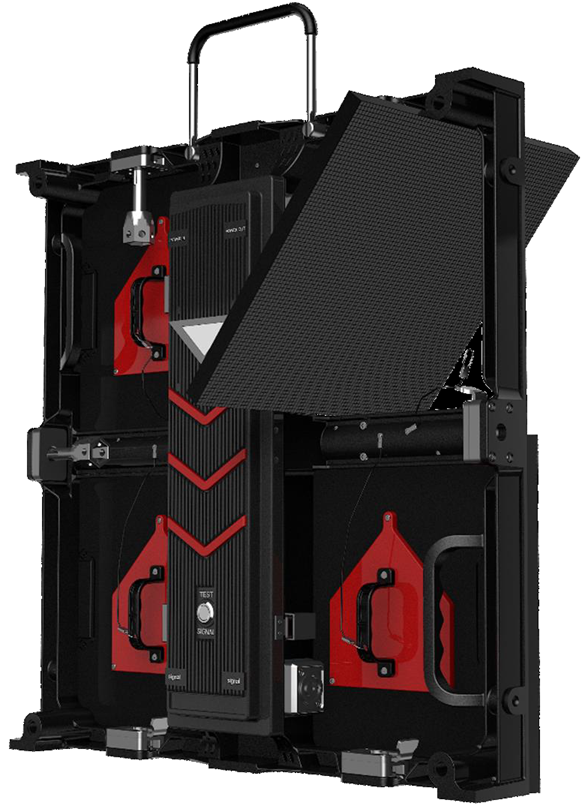

  • Front & Rear Maintenance to suit any installation
  • Status light to show correct installation or errors
  • Range of mounting solutions available

Speak to our team on +44 (0)191 341 0016

Speak to our team on +44 (0)191 341 0016

Speak to our team on
+44 (0)191 341 0016


Technical Specification

  • Pixel Pitch Options:  1mm,  2mm
  • Max Panel Resolution:  450x450px (1mm pitch)
  • Pixel Density:  Up to 1.1million / m²
  • Brightness:  800cd/m² minimum
  • Grey Scale:  14bit
  • Refresh Rate:  <1,000Hz
  • Scanning:  30s
  • Panel Dimensions:  480x480mm
  • Module Dimensions: 240x240mm (4 per panel)
  • Material:  Die-Cast Aluminium
  • Service Type:  Front & Rear Maintenance Access
  • IP Rating:  IP31 (Indoor)
  • Power Consumption:  270W /m² (avg.)
  • Panel Weight:  8.5KG
